Observer® i 超声波气体泄漏检测仪

Observer® i 超声波气体泄漏检测仪

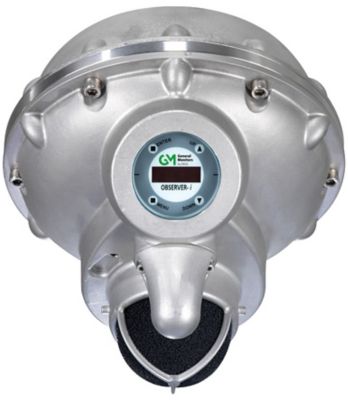

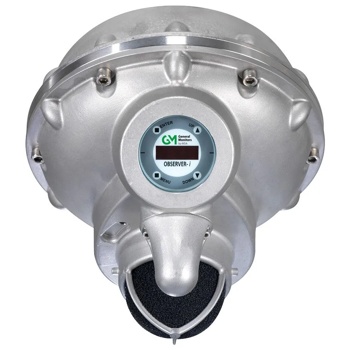

此高精度声学检测仪使用 Gassonic 超声波技术,即时检测带压气体泄漏。即使在传统气体检测方法不适用或者依赖于通风时,此检测仪仍可工作。它采用的人工神经网络 (ANN) 技术可将真正的气体泄漏与误报源区分开来,不需要任何的现场培训。Observer-i UGLD 提供了长达28米的检测范围,减少了所需的检测仪数量。它非常适用于复杂的户外管道系统。

  • 利用 Gassonic 技术,即时检测带压气体泄漏;
  • ANN 技术可将从背景噪音中区分真正的气体泄漏声,抑制假报警源;
  • 不需要现场培训,在安装后可全面运行;
  • 可检测 2 Bar(29 磅/平方英寸)压力,以实现微量泄漏的快速检测;
  • Senssonic™ 自检技术可使其全面无故障运行;
  • 无故障维护、单人检查和校准。
Muestra menos
阅读更多
Observer® i 超声波气体泄漏检测仪
Observer® i 超声波气体泄漏检测仪
特点和优势
视频
配置
认证
工具和培训
样本资料
特点和优势

Gas Detection at the Speed of Sound

Using advanced sound processing, the Observer® i discerns between a gas leak noise event and unwanted background noise, matching omnidirectional acoustic readings with data recordings amassed over a decade from both onshore and offshore facilities in the field. In contrast to earlier generations of ultrasonic detectors listening only at frequencies over 25 kHz, the Observer-i monitors down to 12 kHz without picking up unwanted background noise. This lower frequency range significantly increases the detection radius while maintaining a reduction in false alarms.

视频

We’re Upgrading Our Video Experience

The videos on this page are temporarily unavailable as we migrate to a new platform. They’ll be back in a few weeks with an updated experience. In the meantime, you can find related content on our YouTube channel. Thank you for your patience!

配置
具体应用场景
泄漏检测
市场应用领域
一般工业
石油和天然气
公共设施
认证
批准可能会因配置、部分编号和/或国家/地区而有所不同, 并且可能会未经通知而更改。联系客户服务部或检查产品上的批准标签,以了解具体的批准信息
Part Number(s)
Observer® i 超声波气体泄漏检测仪
OBSERVERI-1008
OBSERVERI-1008
GASSONIC超声波气体泄漏探测器,3.5mA ART,3/4NPT
OBSERVERI-1008
GASSONIC超声波气体泄漏探测器,3.5mA ART,3/4NPT
80601-1
80601-1
MOUNTING BRACKET
80601-1
MOUNTING BRACKET
OBSERVERI-1008
OBSERVERI-1008
3.5mA HART, source current, single Modbus, Alarm de-energized, 3/4" NPT screw terminal, EA01
停产
OBSERVERI-1008
3.5mA HART, source current, single Modbus, Alarm de-energized, 3/4" NPT screw terminal, EA01
停产

请求更多信息
