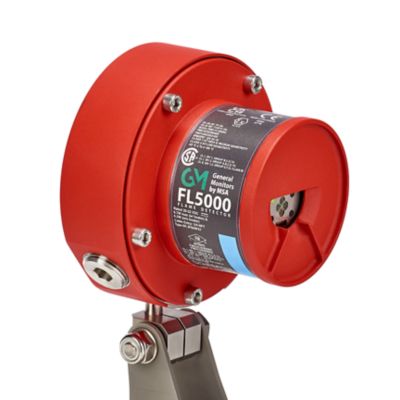

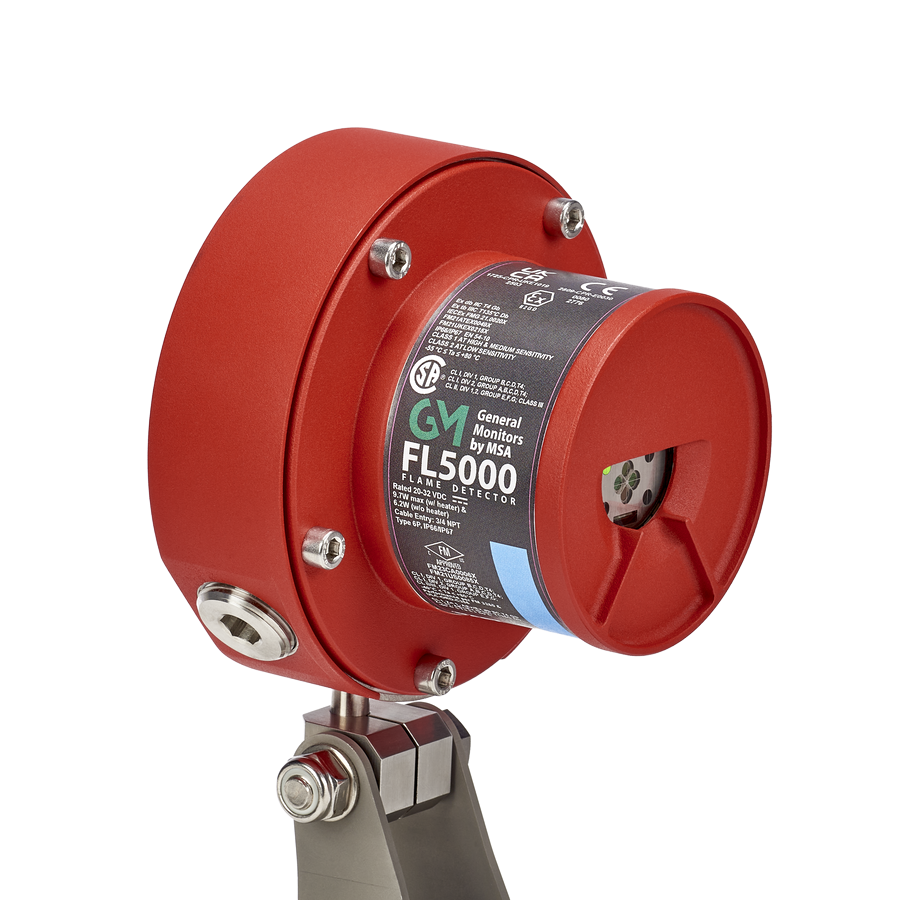

FL5000 MSIR Flame Detector

FL5000 MSIR Flame Detector

Extend your detection range and reduce false alarms with the FL5000 MSIR Flame Detector

The MSA General Monitors® FL5000 is an advanced multi-spectrum infrared (MSIR) flame detector that provides superior false alarm discrimination over long distances. The FL5000 employs a multi-spectral optical IR sensing array with sophisticated Artificial Neural Networks (ANN) to reliably discriminate between actual flames and the vast majority of false alarm sources.

Muestra menos
阅读更多
FL5000 MSIR Flame Detector
FL5000 MSIR Flame Detector
Extend your detection range and reduce false alarms with the FL5000 MSIR Flame Detector
特点和优势
视频
配置
选项
认证
样本资料
特点和优势

Next Generation Flame Detection

Features:

  • Enhanced Performance. Detects fires up to 310 ft (95 m) away.
  • False Alarm Discrimination. Improved false signal suppression using advanced neural network technology.
  • Bluetooth Technology. Configuration and diagnostics using exclusive Flame Connect app.
  • 22 FM-test fuel sources for unbiased performance verification
  • Backwards Compatibility. Easily upgrade FL4000H/FlameGard 5 MSIR detectors with upgrade kit
  • Test Anytime, Anywhere. Easily test with our exclusive TL105 Test Lamp that allows the FL5000 MSIR Flame Detector to be safely tested under real fire conditions with a simulated flicker of a flame.
  • Optical Path Integrity Self-Check. Continuous Optical Path Monitoring (COPM) performs self-check every two minutes to ensure the optical path is clear and the electronic circuitry is functional.
视频
显示更多视频
显示更少视频
配置
Distance
310 ft (95 m) for n-Heptane fire
Heated Optics
Yes
Housing
316 Stainless Steel, Red Powder Coated
Product Diameter
5.44" (138 mm) - base, 3.50" (89 mm) - optical housing
Product Height
4.3" (109 mm)
Product Weight
7.6 lbs (3.45 kg) - without mounting bracket
Response Time
10 sec
Spectral Range
2-5 microns (IR)
市场
Utilities
Oil & Gas
General Industry
质保
5 Years
选项
  • Accessories: Mounting bracket, test lamp, rain guard, air curtain, cleaning solution, upgrade kit
Downloads
认证
批准可能会因配置、部分编号和/或国家/地区而有所不同, 并且可能会未经通知而更改。联系客户服务部或检查产品上的批准标签,以了解具体的批准信息
样本资料
Part Number(s)
