FL500-H2紫外红外氢气火焰探测器

FL500-H2紫外红外氢气火焰探测器

Ultraviolet / Infrared Flame Detector with false alarm immunity

FL500 氢气火焰探测器能够检测氢气火焰发出的位于紫外频段和红外频段的热辐射。紫外红外频段检测技术能够提供快速检测火焰的能力,以及出色的抗误报警能力。
Muestra menos
阅读更多

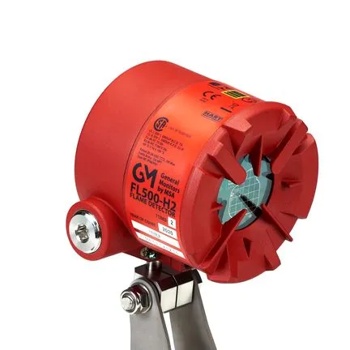

MSA FL3100H UV/Infared Flame Detector
FL500-H2紫外红外氢气火焰探测器
Ultraviolet / Infrared Flame Detector with false alarm immunity
特点和优势
视频
选项
认证
工具和培训
样本资料
特点和优势

Relentless Protection Over What Matters Most

  • Proven Technology. UV/IR flame detection uses an ultraviolet and an infrared detector to monitor for flames increasing false alarm immunity by measuring two different flame spectrums.
  • Wide Field of View. 125° cone of vision covers greater distance.
  • Safety Integrity Self-Check. Continuous Optical Path Monitoring (COPM) performs self-check every two minutes to ensure the optical path is clear and the electronic circuitry is functional.
  • Test Anytime, Anywhere. Easily test with our exclusive TL105 Test Lamp that allows the FL500 UV/IR Flame Detector to be safely tested under real fire conditions with a simulated flicker of a flame.
  • Withstands Extremes. Wide operating temperature range (-55°C to +85°C) permits operation in extreme environments.
  • Status at a Glance. Three LED status indicators for warning, alarm, and normal operations.
  • Rugged Housing. 316 stainless steel housing to withstand the harshest environments
视频
显示更多视频
显示更少视频
选项
  • Outputs: 4-20 mA (sink or source analog), HART, Modbus, 5 A relays
Ordering Information Drawings Downloads
认证
批准可能会因配置、部分编号和/或国家/地区而有所不同, 并且可能会未经通知而更改。联系客户服务部或检查产品上的批准标签,以了解具体的批准信息
工具和培训
样本资料
Part Number(s)

请求更多信息
