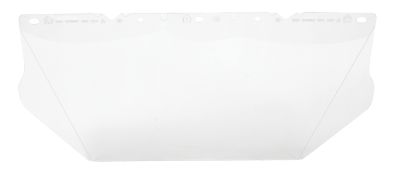

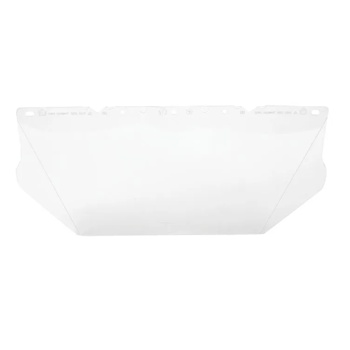

V-Gard® PC透明面屏

View Part Numbers

可配合V-Gard防飞溅面罩使用。

Part Number
Description

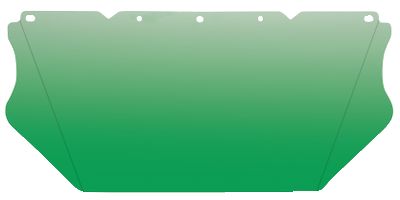

PC材质,浅绿色面屏,防雾防刮擦

Length: 422.000 MM (16.614 IN)
Width: 203.000 MM (7.992 IN)
Height: 20.000 MM (0.787 IN)
Weight: 0.150 KG (0.331 LB)
Size: ONE SIZE FITS ALL
Color: GREEN TINT
  • 尺寸:长43.2厘米,高20.32厘米,厚1.52毫米;
  • 防雾防刮擦涂层;
  • 两边轻微弯曲有效防止物体冲击及液体飞溅;
  • UV防护;
  • 绿色面屏能够缓解强光带来的视觉压力及疲劳,特别适合户外强光下使用。
  • 注意:切勿在红外环境下使用本品。
Markets: 建筑, 一般工业, 采矿业, 石油和天然气, 公共设施

Approvals subject to change without notice and may differ based on configuration, part number and/or country.
Contact Customer Service or check approval label on product for specific approval information.

Visors 10154949 & 10154950 = 2C-1,2 1B 389 KN


EN166 marking explanation
"1" highest optical quality for permanent use

Filter class:
2C UV filter with enhanced colour recognition

Scale number:
2C-1.2  Light Transmission 74.4%-100% (UV EN170)

“B” High speed particles with medium energy impact (120 m/s)

“3” Liquid droplets and splash
“8” Electric arc resistance
“9” Non-adherence of molten metal and resistance to penetration of hot solids

“K” Resistance to surface damage by fine particles
“N” Resistance to fogging
