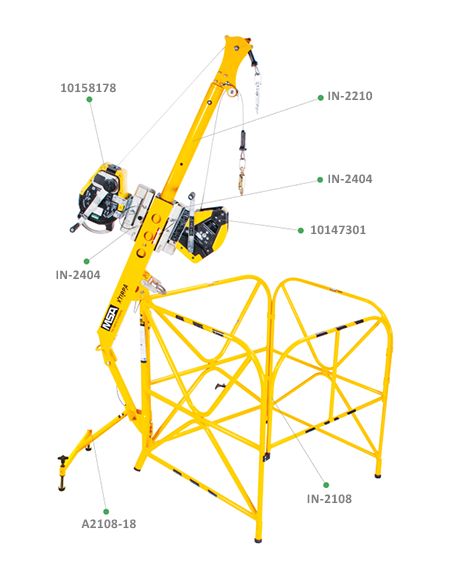

MSA/XTIRPA™ MANHOLE GUARD SYSTEM











Required

  • IN-2210 - Davit Arm 24" Reach
  • IN-2108 - Manhole Guard Integrated Mast 42"



Optional

  • IN-2324 - Large Manhole Guard Integrated Mast 42"
  • IN-2101 - Multifunctional Barricade 4 Side
  • A2101-07 - Multifunctional Barricade 1 Side
  • IN-2176 - Kick Plate for Manhole Guard and Barricade
  • A2108-18 - Satbilizer for Manhole Guard 42"
  • A2108-20 - Stabilizer for Wheels for Manhole Guard 42"



Entry Equipment

  • 10158178 - Workman Rescuer
  • 10147301 - Workman Winch
  • IN-2404 - Mounting Bracket (Workman)
  • 10007782 - Dynevac II
  • IN-2391 - Mounting Bracket (Dynevac II)



Product Bulletin: MSA/XTIRPA™ Manhole Guard System

User Instructions: MSA/XTIRPA™ Manhole Guard System

User Instructions: MSA/XTIRPA™ Brackets




MSA/XTIRPA™ MANHOLE COLLAR SYSTEM











Required

  • IN-2210 - Davit Arm 24" Reach
  • IN-2003 - Mast, 3" Diameter
  • Manhole Collar (size dependent on entry)



Optional

  • See bulletin link below for optional components



Entry Equipment

  • 10158178 - Workman Rescuer
  • 10147301 - Workman Winch
  • IN-2404 - Mounting Bracket (Workman)
  • 10007782 - Dynevac II
  • IN-2391 - Mounting Bracket (Dynevac II)



Product Bulletin: MSA/XTIRPA™ Systems

User Instructions: MSA/XTIRPA™ Manhole Collar System

User Instructions: MSA/XTIRPA™ Brackets

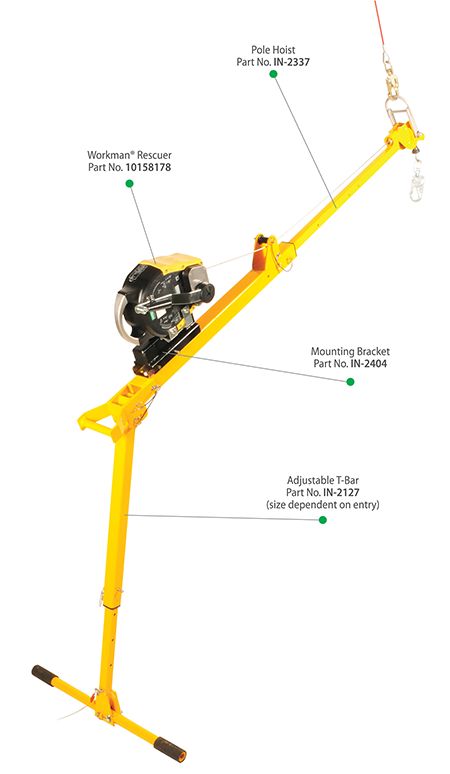

MSA/XTIRPA™ POLE HOIST SYSTEM











Required

  • IN-2337 48"-72" Pole Hoist or IN-2338 57"-102" Pole Hoist
  • Adjustable T-Bar (size dependent on entry)
  • Anchorage Connector



Optional

  • See bulletin link below for optional components



Entry Equipment

  • 10158178 - Workman Rescuer
  • 10147301 - Workman Winch
  • IN-2404 - Mounting Bracket (Workman)
  • 10007782 - Dynevac II
  • IN-2391 - Mounting Bracket (Dynevac II)



Product Bulletin: MSA/XTIRPA™ Systems

User Instructions: MSA/XTIRPA™ Pole Hoist System

User Instructions: MSA/XTIRPA™ Brackets

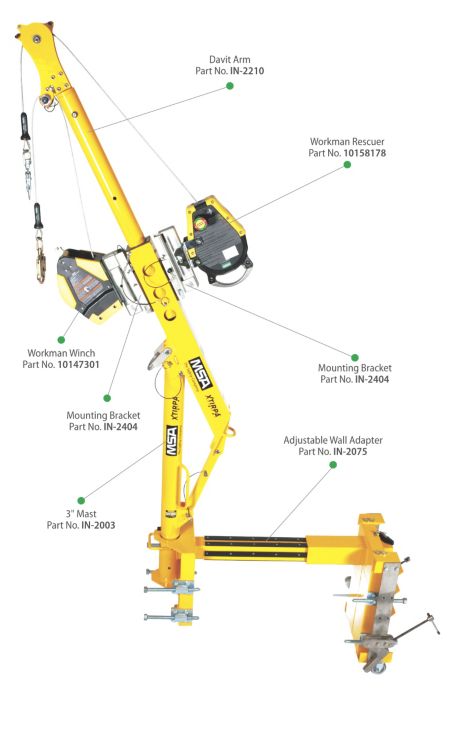

MSA/XTIRPA™ ADJUSTABLE WALL ADAPTER











Required

  • Davit Arm IN-2210
  • 3" Mast IN-2003
  • Adjustable Wall Adapter



Optional

  • See bulletin link below for optional components



Entry Equipment

  • 10158178 - Workman Rescuer
  • 10147301 - Workman Winch
  • IN-2404 - Mounting Bracket (Workman)
  • 10007782 - Dynevac II
  • IN-2391 - Mounting Bracket (Dynevac II)



Product Bulletin: MSA/XTIRPA™ Systems

User Instructions: MSA/XTIRPA™ Adjustable Wall Adapter

User Instructions: MSA/XTIRPA™ Brackets




MSA/XTIRPA™ ADAPTER BASE SYSTEM 30"–48" REACH











Required

  • Davit Arm IN-2237
  • 4" Mast with 42" Height IN-2240 or 4" Mast with 60"Height IN-2313
  • 4" Adapter Base



Optional

  • See bulletin link below for optional components



Entry Equipment

  • 10158178 - Workman Rescuer
  • 10147301 - Workman Winch
  • IN-2404 - Mounting Bracket (Workman)
  • 10007782 - Dynevac II
  • IN-2391 - Mounting Bracket (Dynevac II)



Product Bulletin: MSA/XTIRPA™ Systems

User Instructions: MSA/XTIRPA™ Adapter Base System 30-48" Reach

User Instructions: MSA/XTIRPA™ Brackets

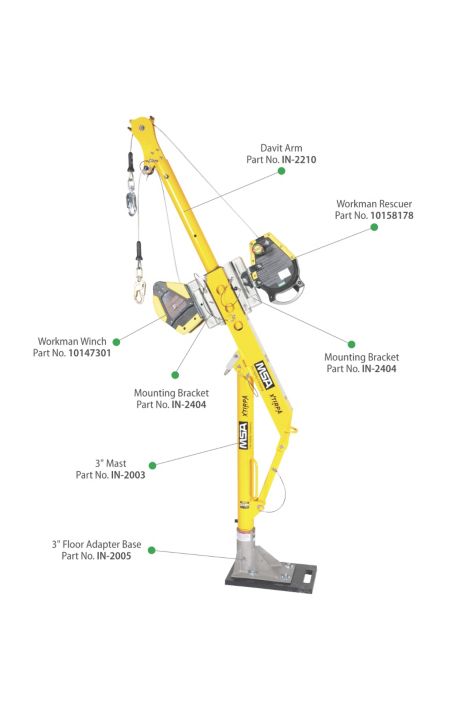

MSA/XTIRPA™ ADAPTER BASE SYSTEM 24" REACH











Required

  • Davit Arm IN-2210
  • 3" Mast IN-2003
  • 3" Adapter Base



Optional

  • See bulletin link below for optional components



Entry Equipment

  • 10158178 - Workman Rescuer
  • 10147301 - Workman Winch
  • IN-2404 - Mounting Bracket (Workman)
  • 10007782 - Dynevac II
  • IN-2391 - Mounting Bracket (Dynevac II)



Product Bulletin: MSA/XTIRPA™ Systems

User Instructions: MSA/XTIRPA™ Adapter Base System 24" Reach

User Instructions: MSA/XTIRPA™ Brackets

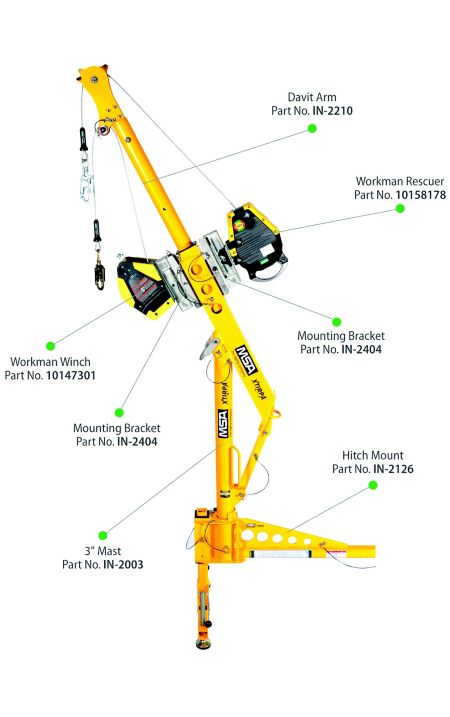

MSA/XTIRPA™ VEHICLE HITCH MOUNT SYSTEM











Required

  • Davit Arm IN-2210
  • 3" Mast IN-2003
  • Hitch Mount with
    24" Stabilizer
    IN-2126
    or
    Hitch Mount with 60" Stabilizer
    IN-2204
  • Rescuer SRL such as
    10158178
    and corresponding attachment
    bracket such as
    IN-2404



Optional

  • See bulletin link below for optional components



Entry Equipment

  • 10158178 - Workman Rescuer
  • 10147301 - Workman Winch
  • IN-2404 - Mounting Bracket (Workman)
  • 10007782 - Dynevac II
  • IN-2391 - Mounting Bracket (Dynevac II)



Product Bulletin: MSA/XTIRPA™ Systems

User Instructions: MSA/XTIRPA™ Vehicle Hitch Mount System

User Instructions: MSA/XTIRPA™ Brackets



MSA/XTIRPA™ COUNTER WEIGHT SYSTEM











Required

  • Davit Arm IN-2210
  • 3" Mast IN-2003
  • 3" Adapter Base



Optional

  • See bulletin link below for optional components



Entry Equipment

  • 10158178 - Workman Rescuer
  • 10147301 - Workman Winch
  • IN-2404 - Mounting Bracket (Workman)
  • 10007782 - Dynevac II
  • IN-2391 - Mounting Bracket (Dynevac II)



Product Bulletin: MSA/XTIRPA™ Systems

User Instructions: MSA/XTIRPA™ Counter Weight System

User Instructions: MSA/XTIRPA™ Brackets
